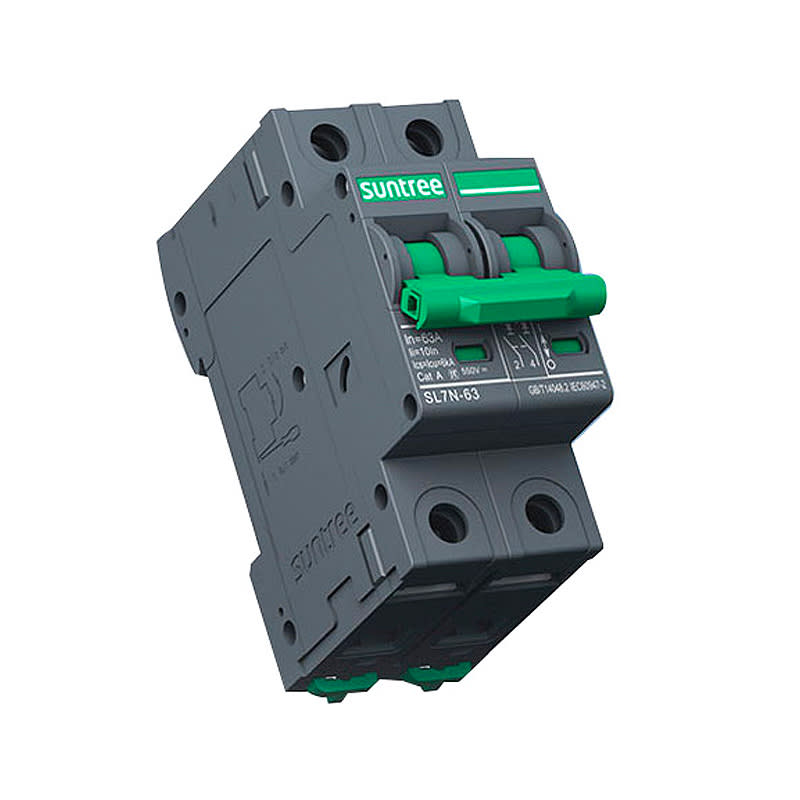

Suntree Dc Circuit Breaker
The Suntree DC Circuit Breakers are high-performance protective devices designed for a wide range of DC applications, including solar photovoltaic systems, battery banks, DC-DC chargers, lighting systems, and other energy storage solutions. These breakers are available in 2-pole versions for up to 1000V and 4-pole versions for systems operating up to 1500V.
They provide essential overcurrent and short-circuit protection, ensuring system safety and performance. Specifically engineered for direct current, the Suntree DC MCBs are capable of safely interrupting continuous current flow—unlike AC breakers—thanks to their robust arc-extinguishing technology.
Key safety features include fast fault isolation, high short-circuit breaking capacities (up to 8kA), and a U-shaped magnetic blowing structure that enhances arc suppression. Built for reliability and long service life, these breakers offer a mechanical lifespan of up to 10,000 operations and an electrical lifespan of up to 2,000 cycles.
With no polarity requirement, flexible busbar design, and compact, attractive structure, these breakers simplify installation and improve wiring reliability in both off-grid and grid-tied DC systems. Their labyrinth arc interrupter, multiple current options (from 6A to 125A), and IP40 protection make them suitable for demanding energy storage and solar applications in various environments.
Features:
-
Voltage Range: 2 Pole (up to 1000V DC), 4 Pole (up to 1500V DC)
-
Applications: Solar PV systems, battery banks, DC loads, lighting, and appliances
-
Protection: Overload, short circuit, fast arc interruption
-
Breaking Capacity: Up to 8kA at 1500V
-
Current Rating: 6A to 125A
-
Design: No polarity requirement, busbar-ready, compact structure
-
Durability: 10,000 mechanical & 2,000 electrical operations
-
Features: U-shaped magnetic arc blowing, labyrinth interrupter, >9mm opening distance
-
Standards: IP40 housing, terminal IP20, Class 2 heat & humidity resistance
-
Installation: DIN rail mount, wide operating temperature (-40°C to +75°C)
